40 - ELECTRICAL SYSTEM( ЭЛЕКТРИЧЕСКАЯ СИСТЕМА)

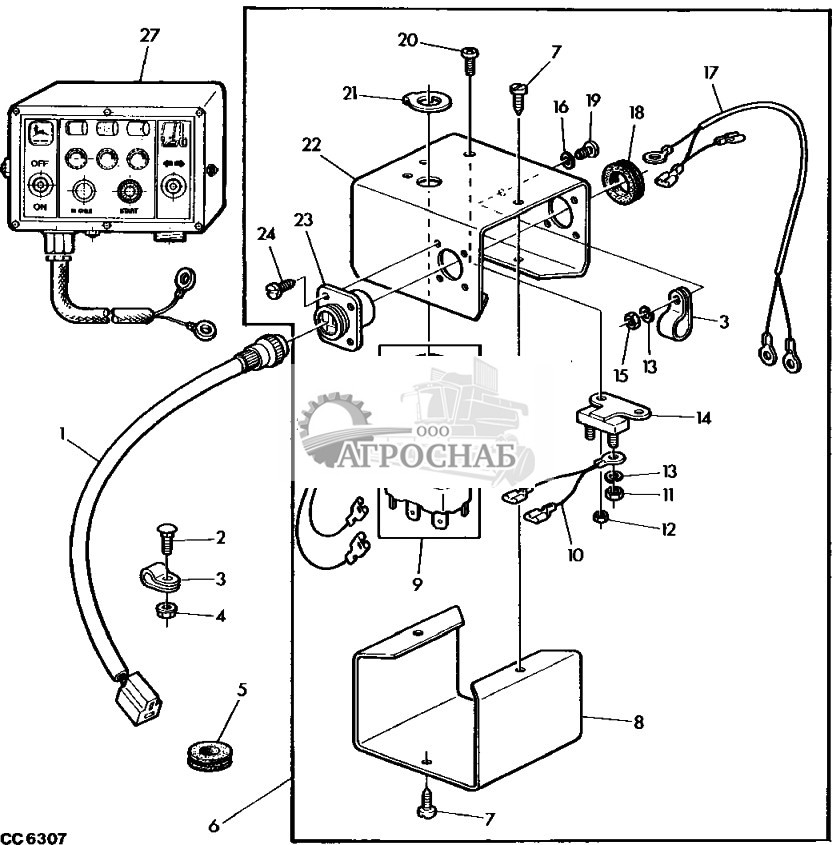

ELECTRIC CYLINDER DRIVE HOUSING(ЭЛЕКТРИЧЕСКИЙ ЦИЛИНДР ПРИВОДА КОРПУС)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | DC27093 | Wiring Harness | 1 | X | ||||||
| 2 | 03M7184 | Bolt | 1 | X | ||||||
| 3 | AP24341 | Clamp | 4 | X | ||||||
| 4 | 14M7298 | Flange Nut | 1 | X | ||||||
| 5 | R76454 | Grommet | 1 | X | ||||||
| 6 | DC32270 | Toggle Switch | 1 | X | ||||||
| 7 | 37M7020 | Screw | 4 | X | ||||||
| 8 | ...... | Holder | 1 | - | 301857 | |||||
| 9 | DC28227 | Switch | 1 | - | 301857 | |||||
| 10 | DC27907 | Wiring Harness | 1 | - | 301857 | |||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS | ||
| 11 | 14H631 | Nut | 2 | X | ||||||
| 12 | 14M7028 | Nut | 1 | X | ||||||
| 13 | 12M7011 | Lock Washer | 3 | X | ||||||
| 14 | AR49352 | Circuit Breaker | 1 | X | ||||||
| 15 | 14M7166 | Lock Nut | 1 | X | ||||||
| 14M7166 | Lock Nut | 1 | X | |||||||
| 16 | 24M7055 | Washer | 1 | X | ||||||
| 17 | DC27094 | Wiring Harness | 1 | - | 301857 | |||||
| 18 | Z43995 | Grommet | 1 | X | ||||||
| 19 | 21M7081 | Screw | 1 | X | ||||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS | ||
| 20 | 21M7271 | Screw | 1 | X | ||||||
| 21 | CC27906 | Lock Washer | 1 | - | 301857 | |||||
| 22 | ...... | Holder | 1 | - | 301857 | |||||
| 23 | CC27095 | Socket Outlet | 1 | X | ||||||
| 24 | 37M7100 | Screw | 4 | X | ||||||
| 25 | DC27908 | Wiring Harness | 1 | - | 301857 | |||||
| 26 | DC27909 | Wiring Harness | 1 | - | 301857 | |||||
| 27 | DC31163 | Toggle/Rocker Switch | 1 | X | ||||||
| .. | DC33462 | Toggle Switch | 1 | X |

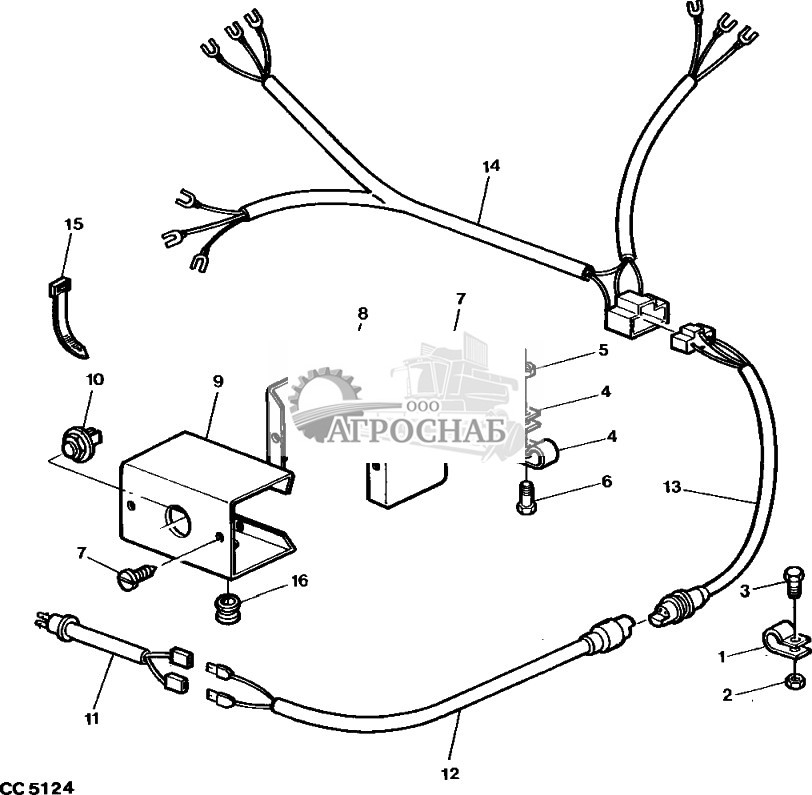

SOUND MONITOR(ЗВУКОВОЙ МОНИТОР)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | E15360 | Clamp | 9 | X | ||||
| 2 | 14M7298 | Flange Nut | 1 | X | ||||
| 3 | 19M7139 | Cap Screw | 1 | X | ||||
| 4 | Z29820 | Clamp | 2 | X | ||||
| 5 | 14M7272 | Nut | 1 | X | ||||
| 6 | 19M7286 | Cap Screw | 1 | X | ||||
| 7 | 37M7020 | Screw | 4 | X | ||||
| 8 | CC23712 | Bracket | 1 | X | ||||
| 9 | CC23713 | Bracket | 1 | X | ||||
| 10 | AE44436 | Horn | 1 | X | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS |
| 11 | DC24141 | Wiring Harness | 1 | X | ||||
| 12 | DC24142 | Wiring Harness | 1 | X | ||||
| 13 | DC24144 | Wiring Harness | 1 | X | ||||
| 14 | DC24143 | Wiring Harness | 1 | X | ||||
| 15 | R44302 | Tie Band | 3 | X | ||||
| 16 | Z34506 | Grommet | 1 | X |

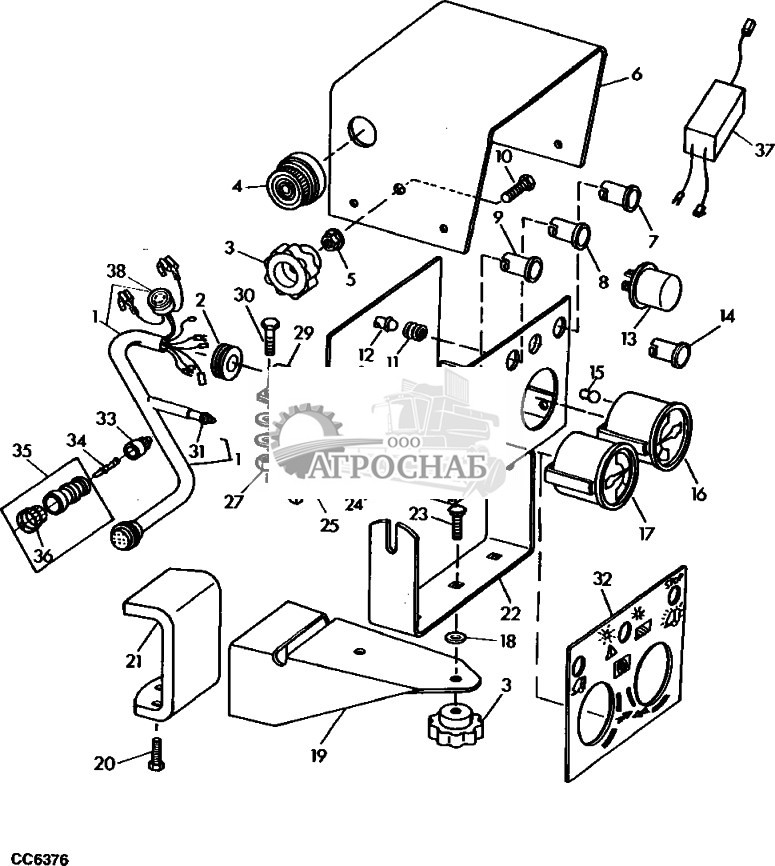

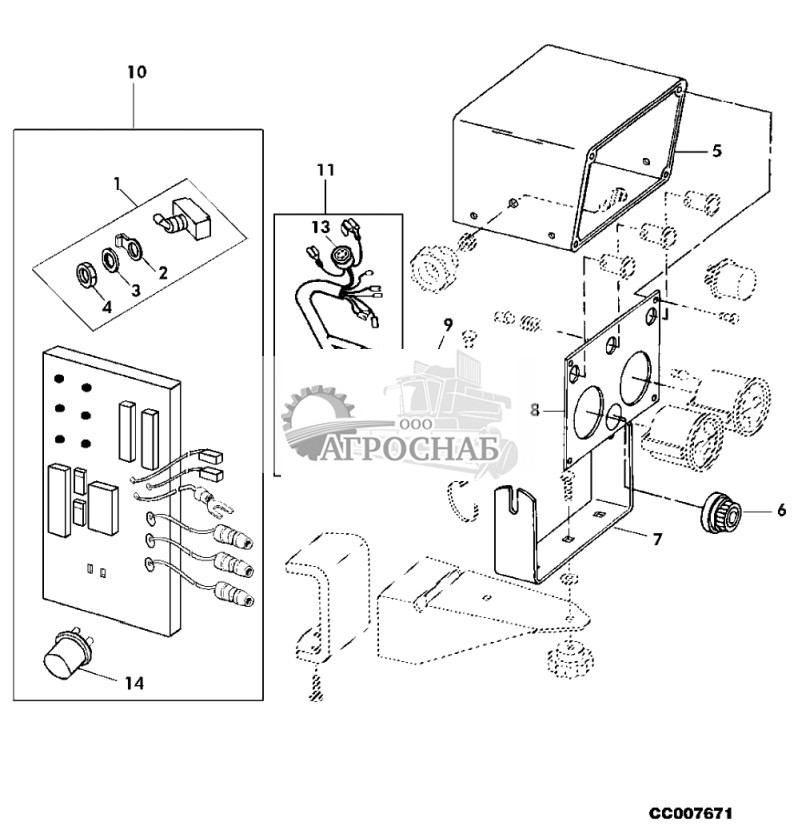

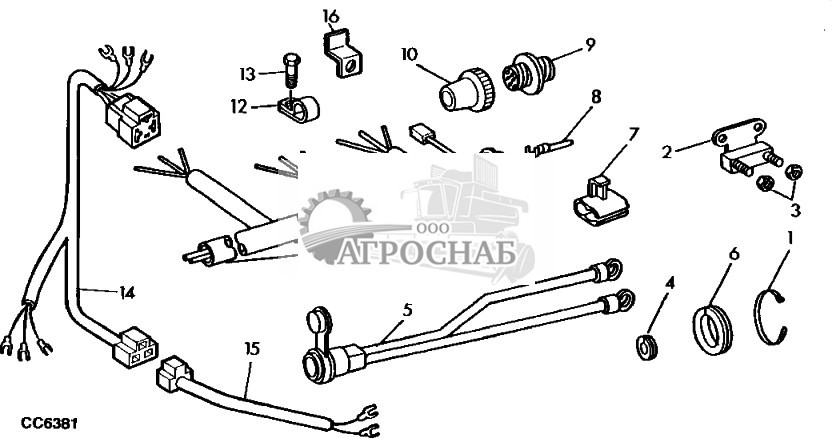

MONITOR BOX(ОКНО МОНИТОР )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | DC32961 | Wiring Harness | 1 | - | 306326 | |||||
| 2 | T23247 | Grommet | AR | - | 306326 | |||||
| 3 | R44446 | Knob | 3 | X | ||||||
| 4 | AA22182 | Device | 1 | - | 306326 | |||||
| 5 | N10213 | Lock Nut | 2 | X | ||||||
| 6 | E65042 | Channel | 1 | - | 306326 | |||||
| 7 | AE49040 | Circuit Board | 1 | X | ||||||
| 8 | AE42559 | Lens | 1 | X | ||||||
| 9 | AE42561 | Lens | 1 | X | ||||||
| 10 | 19H1849 | Cap Screw | 2 | X | ||||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS | ||
| 11 | R30378 | Spring | 4 | X | ||||||
| 12 | AM31284 | Bulb | 4 | X | ||||||
| 13 | AU41465 | Flasher | 1 | X | ||||||
| 14 | AT48673 | Lens | 1 | X | ||||||
| 15 | AA4927R | Bulb | 2 | X | ||||||
| 16 | AE45337 | Gauge | 1 | X | ||||||
| 17 | AE45338 | Gauge | 1 | X | ||||||
| 18 | 24H1224 | Washer | 1 | X | ||||||
| 19 | A40983 | Support | 1 | X | ||||||
| 20 | 19H2849 | Cap Screw | 3 | X | ||||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS | ||
| 21 | A40984 | Clevis | 1 | X | ||||||
| 22 | E71370 | Channel | 1 | - | 306326 | |||||
| 23 | 03H1937 | Bolt | 1 | X | ||||||
| 24 | E65041 | Panel | 1 | - | 306326 | |||||
| 25 | 19H1227 | Cap Screw | 4 | X | ||||||
| 26 | BP13712 | Nut | 4 | X | ||||||
| 27 | 14H812 | Nut | 1 | X | ||||||
| 28 | 24M7178 | Washer | 2 | X | ||||||
| 29 | R46414 | Clamp | 3 | X | ||||||
| 30 | 19H1936 | Cap Screw | 1 | X | ||||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS | ||
| 31 | RE11344 | Plug | 1 | X | ||||||
| 32 | CC21050 | Plate | 1 | X | ||||||
| 33 | AE44390 | Elec. Connector Accessory | 1 | X | ||||||
| 34 | R77465 | Elec. Connector Terminal | 1 | X | ||||||
| 35 | H118422 | Elec. Connector Terminal | 1 | X | ||||||
| 36 | R77460 | Elec.Connect Locking Device | 1 | X | ||||||
| 37 | DC31064 | Wiring Harness | 1 | X | ||||||
| 38 | Z46118 | Elec.Connect Locking Device | 1 | X |

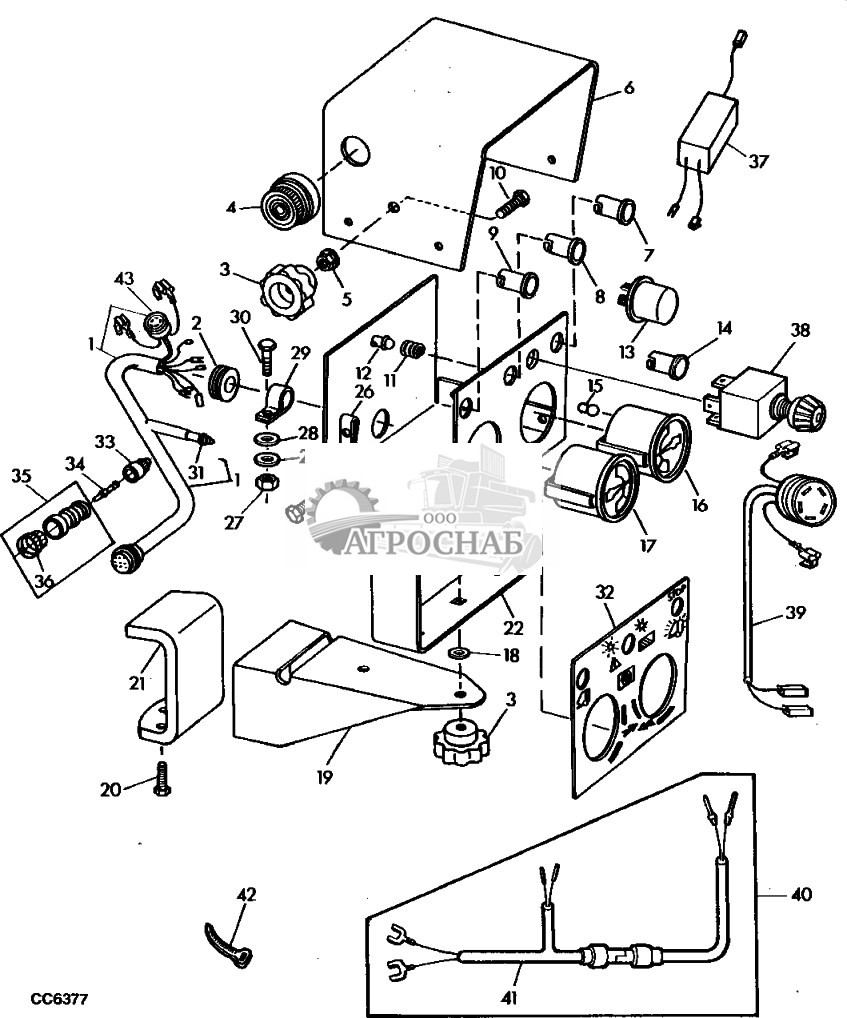

MONITOR BOX(ОКНО МОНИТОР )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | DC32961 | Wiring Harness | 1 | - | 294413 | |||||
| 2 | T23247 | Grommet | AR | - | 295307 | |||||
| 3 | R44446 | Knob | 3 | X | ||||||
| 4 | AA22182 | Device | 1 | - | 295307 | |||||
| 5 | N10213 | Lock Nut | 2 | X | ||||||
| 6 | E65042 | Channel | 1 | - | 295307 | |||||
| 7 | AE49478 | Lens | 1 | X | ||||||
| 8 | AE42559 | Lens | 1 | X | ||||||
| 9 | AE42561 | Lens | 1 | X | ||||||
| 10 | 19H1849 | Cap Screw | 2 | X | ||||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS | ||
| 11 | R30378 | Spring | 4 | X | ||||||
| 12 | AM31284 | Bulb | 4 | X | ||||||
| 13 | AU41465 | Flasher | 1 | X | ||||||
| 14 | AT48673 | Lens | 1 | X | ||||||
| 15 | AA4927R | Bulb | 2 | X | ||||||
| 16 | AE40728 | Gauge | 1 | - | 260000 | |||||
| AE45337 | Gauge | 1 | 260001 | - | ||||||
| 17 | AE40729 | Gauge | 1 | - | 260000 | |||||
| AE45338 | Gauge | 1 | 260001 | - | ||||||
| 18 | 24H1224 | Washer | 1 | X | ||||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS | ||
| 19 | A40983 | Support | 1 | X | ||||||
| 20 | 19H2849 | Cap Screw | 3 | X | ||||||
| 21 | A40984 | Clevis | 1 | X | ||||||
| 22 | E71370 | Channel | 1 | - | 295307 | |||||
| 23 | 03H1937 | Bolt | 1 | X | ||||||
| 24 | E65041 | Panel | 1 | - | 295307 | |||||
| 25 | 19H1227 | Cap Screw | 4 | X | ||||||
| 26 | BP13712 | Nut | 4 | X | ||||||
| 27 | 14H812 | Nut | 1 | X | ||||||
| 28 | 24M7178 | Washer | 2 | X | ||||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS | ||
| 29 | R46414 | Clamp | 3 | X | ||||||
| 30 | 19H1936 | Cap Screw | 1 | X | ||||||
| 31 | RE11344 | Plug | 1 | X | ||||||
| 32 | CC21050 | Plate | 1 | X | ||||||
| 33 | AE44390 | Elec. Connector Accessory | 1 | X | ||||||
| 34 | R77465 | Elec. Connector Terminal | 1 | X | ||||||
| 35 | H118422 | Elec. Connector Terminal | 1 | X | ||||||
| 36 | R77460 | Elec.Connect Locking Device | 1 | X | ||||||
| 37 | DC31064 | Wiring Harness | 1 | - | 294413 | |||||
| 38 | DC31875 | Switch | 1 | X | ||||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS | ||
| 39 | DC31733 | Wiring Harness | 1 | - | 294413 | |||||
| 40 | DC31732 | Wiring Harness | 1 | - | 294413 | |||||
| 41 | DC32878 | Wiring Harness | 1 | 294414 | - | |||||
| 42 | R44302 | Tie Band | 10 | X | ||||||
| 43 | Z46118 | Elec.Connect Locking Device | 1 | X | ||||||
| .. | DC33405 | Wiring Harness | 1 | 294414 | - | 295307 |
MONITOR BOX(ОКНО МОНИТОР )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | AU41462 | Toggle/Rocker Switch | 1 | 306327 | - | |||||
| AU41462 | Toggle/Rocker Switch | 1 | 295308 | - | ||||||
| 2 | R44096 | Lock Plate | 1 | 306327 | - | |||||
| R44096 | Lock Plate | 1 | 295308 | - | ||||||
| 3 | M91168 | Spring Washer | 1 | 306327 | - | |||||
| M91168 | Spring Washer | 1 | 295308 | - | ||||||
| 4 | R44097 | Nut | 2 | 306327 | - | |||||
| R44097 | Nut | 2 | 295308 | - | ||||||
| 5 | E78395 | Case | 1 | 306327 | - | |||||
| E78395 | Case | 1 | 295308 | - | ||||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS | ||
| 6 | AA22182 | Device | 1 | 306327 | - | |||||
| AA22182 | Device | 1 | 295308 | - | ||||||
| 7 | E78875 | Bail | 1 | 306327 | - | |||||
| E78875 | Bail | 1 | 295308 | - | ||||||
| 8 | CC33013 | Plate | 1 | 306327 | - | |||||
| CC33013 | Plate | 1 | 295308 | - | ||||||
| 9 | R40445 | Grommet | 1 | 306327 | - | |||||
| R40445 | Grommet | 1 | 295308 | - | ||||||
| 10 | AE49040 | Circuit Board | 1 | 306327 | - | |||||
| AE49040 | Circuit Board | 1 | 295308 | - | ||||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS | ||
| 11 | DC33046 | Wiring Harness | 1 | 306327 | - | |||||
| DC33046 | Wiring Harness | 1 | 295308 | - | ||||||
| 12 | RE11344 | Plug | 1 | X | X | |||||
| 13 | Z46118 | Elec.Connect Locking Device | 1 | X | X | |||||
| 14 | AU41465 | Flasher | 1 | X | X |

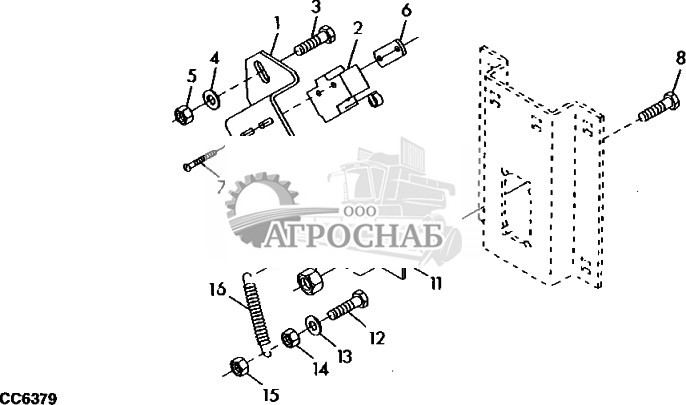

CENTER ARM SWITCH(РЫЧАГ ЦЕНТРАЛЬНЫЙ ПЕРЕКЛЮЧАТЕЛЬ)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | AE42558 | Lever | 1 | X | X | |||
| 2 | R54921 | Spring | 1 | X | X | |||
| 3 | 21H1348 | Screw | 2 | X | X | |||
| 4 | E70394 | Bracket | 1 | X | X | |||
| 5 | 19M6614 | Cap Screw | 2 | X | X | |||
| 6 | E71183 | Strap | 1 | X | X | |||
| 7 | AE48968 | Switch | 1 | X | X | |||
| 8 | 03M7232 | Bolt | 1 | X | X | |||
| 9 | CC102906 | Spacer | 1 | X | X | |||
| 10 | CC102905 | Spacer | 1 | X | X | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS |
| 11 | E41823 | Washer | 1 | X | X | |||
| 12 | 24H1287 | Washer | 1 | X | X | |||
| 13 | 14M7165 | Lock Nut | 1 | X | X | |||
| 14 | 14M7303 | Flange Nut | 2 | X | X |

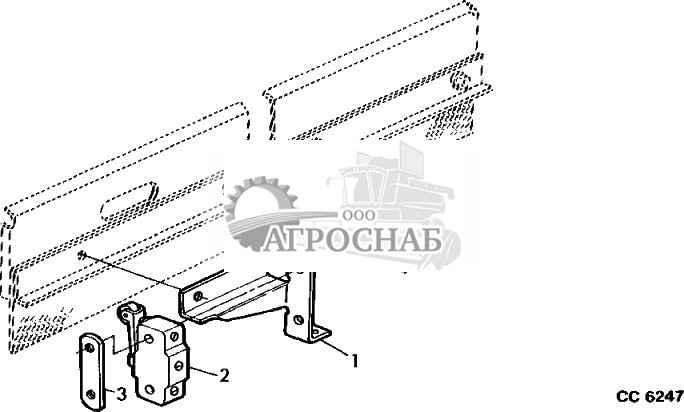

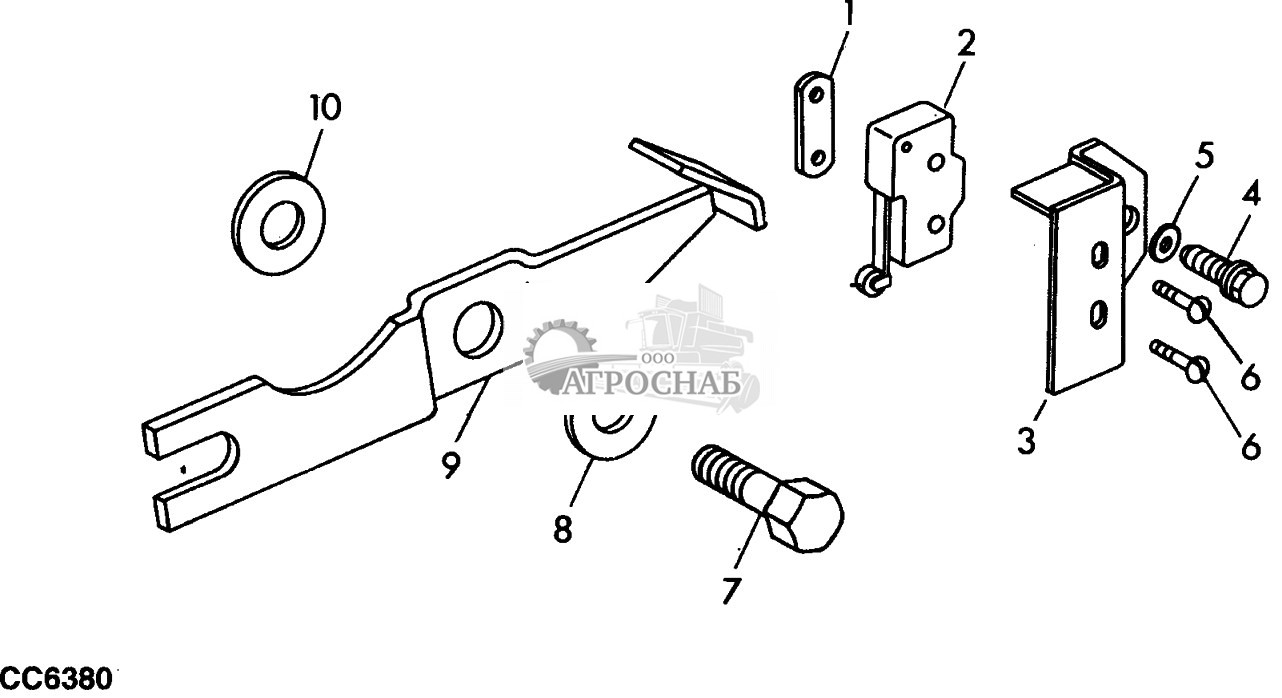

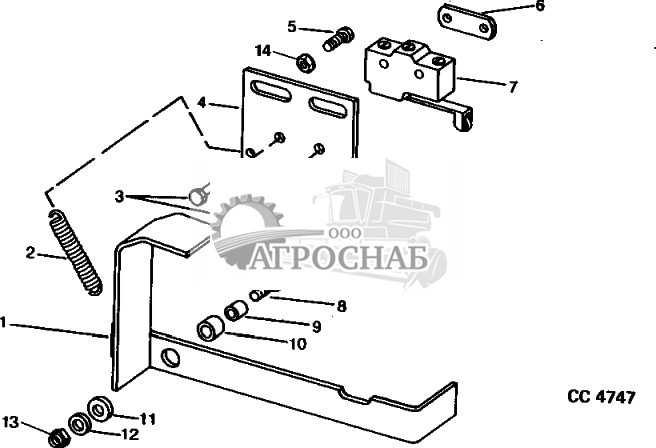

OVERSIZE BALE SWITCH(НЕГАБАРИТНЫХ БЭЙЛ ВЫКЛЮЧАТЕЛЬ)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | CC32710 | Bracket | 1 | 295308 | - | |||||
| 2 | AE48968 | Switch | 1 | 295308 | - | |||||
| 3 | 03M7183 | Bolt | 1 | 295308 | - | |||||
| 4 | 24M7055 | Washer | 1 | 295308 | - | |||||
| 5 | 14M7298 | Flange Nut | 1 | 295308 | - | |||||
| 6 | E71183 | Strap | 1 | 295308 | - | |||||
| 7 | 21H1348 | Screw | 2 | 295308 | - | |||||
| 8 | 03M7200 | Bolt | 1 | 295308 | - | |||||
| 9 | 14M7299 | Flange Nut | 1 | 295308 | - | |||||
| 10 | 14M7168 | Lock Nut | 1 | 295308 | - | |||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS | ||
| 11 | AE48308 | Arm | 1 | 295308 | - | |||||
| 12 | 03M7232 | Bolt | 1 | 295308 | - | |||||
| 13 | 24M7139 | Washer | 1 | 295308 | - | |||||
| 14 | 14M7303 | Flange Nut | 1 | 295308 | - | |||||
| 15 | 14M7165 | Lock Nut | 1 | 295308 | - | |||||
| 16 | R64987 | Spring | 1 | 295308 | - |

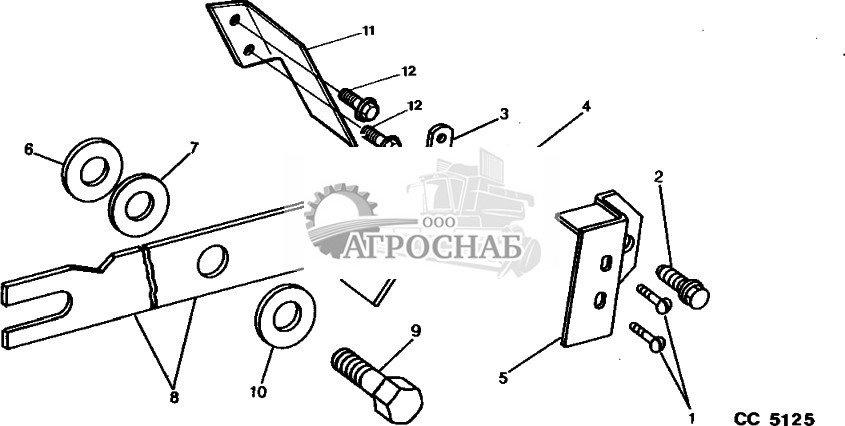

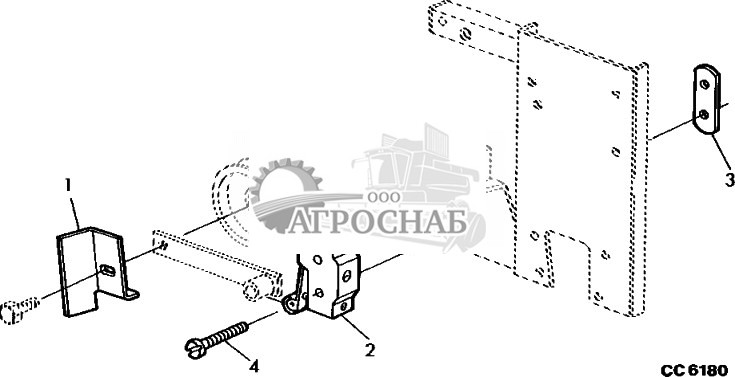

GATE LATCH SWITCH(ЗАЩЕЛКА СТРОБА ПЕРЕКЛЮЧАТЕЛЯ)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | 21H1348 | Screw | 2 | X | ||||
| 21H1348 | Screw | 4 | X | |||||
| 2 | E70406 | Screw | 1 | X | ||||
| E70406 | Screw | 2 | X | |||||
| 3 | E71183 | Strap | 1 | X | ||||
| E71183 | Strap | 2 | X | |||||
| 4 | AE48968 | Switch | AR | X | X | |||
| 5 | CC32709 | Bracket | 1 | X | X | |||
| CC32710 | Bracket | 1 | X | |||||
| CC32709 | Bracket | 1 | X | X | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS |
| 6 | E31497 | Washer | 4 | X | ||||
| 7 | R56397 | Washer | 2 | X | ||||
| 8 | AE43999 | Lever | 1 | X | ||||
| AE45262 | Lever | 1 | X | |||||
| 9 | 37M7137 | Screw | 2 | X | ||||
| 10 | 24H1657 | Washer | 2 | X | ||||
| 11 | CC23626 | Lever | 1 | X | ||||
| 12 | 37M7090 | Screw | 2 | X |
GATE LATCH SWITCH(ЗАЩЕЛКА СТРОБА ПЕРЕКЛЮЧАТЕЛЯ)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | E71183 | Strap | 2 | 295308 | - | |||||
| 2 | AE48968 | Switch | 2 | 295308 | - | |||||
| 3 | CC32709 | Bracket | 1 | 295308 | - | |||||
| CC32710 | Bracket | 1 | 295308 | - | ||||||
| 4 | 37M7084 | Screw | 2 | 295308 | - | |||||
| 5 | 24M7055 | Washer | 2 | 295308 | - | |||||
| 6 | 21H1348 | Screw | 4 | 295308 | - | |||||
| 7 | 37M7080 | Screw | 2 | 295308 | - | |||||
| 8 | 24H1214 | Washer | 2 | 295308 | - | |||||
| 9 | AE47764 | Arm | 1 | 295308 | - | |||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS | ||
| AE47765 | Arm | 1 | 295308 | - | ||||||
| 10 | M68987 | Washer | 2 | 295308 | - |

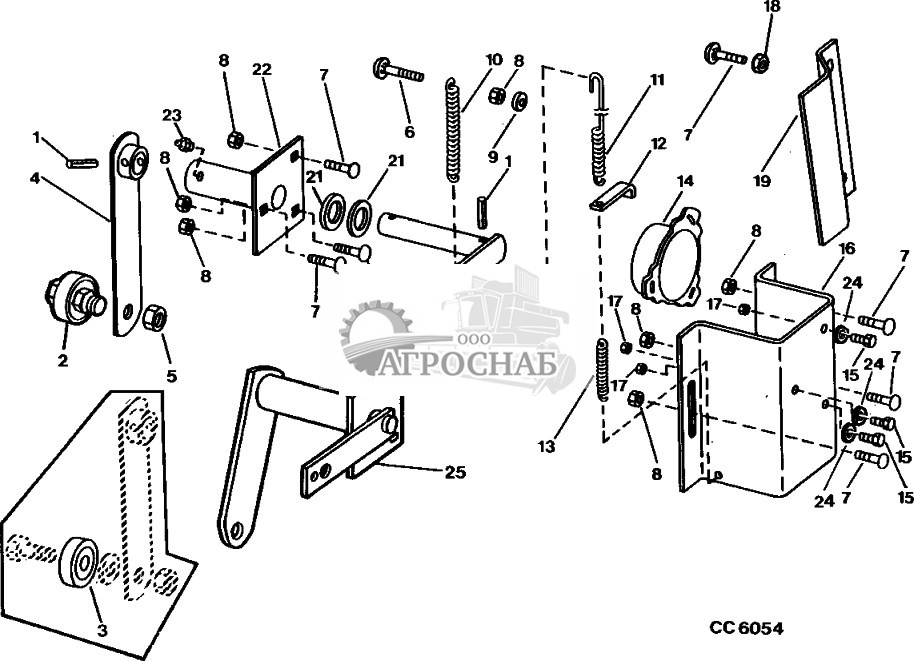

BALE SHAPE MONITOR(БЭЙЛ ФОРМЫ КОНТРОЛЯ)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 34H284 | Spring Pin | 4 | - | 280202 | |||||
| 2 | AE22485 | Cam Follower | 2 | 280365 | - | |||||
| 3 | AE11579 | Ball Bearing | 2 | - | 280364 | |||||
| 4 | AE41959 | Arm | 1 | - | 260000 | |||||
| AE41958 | Arm | 1 | - | 260000 | ||||||
| AE45434 | Arm | 1 | 260001 | - | 280202 | |||||
| AE45435 | Arm | 1 | 260001 | - | 280202 | |||||
| 5 | A4655R | Nut | 2 | X | ||||||
| 6 | 03M7187 | Bolt | 2 | X | ||||||
| 7 | 03M7183 | Bolt | 16 | X | X | |||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS | ||
| 8 | 14M7298 | Flange Nut | 14 | X | X | |||||
| 9 | 14M7166 | Lock Nut | 2 | X | ||||||
| 10 | M61130 | Spring | 2 | X | ||||||
| 11 | E69488 | Extension Spring | 2 | X | X | |||||
| 12 | E69487 | Angle | 2 | X | X | |||||
| 13 | R54921 | Spring | 2 | X | X | |||||
| 14 | AE41961 | Sender | 2 | X | X | |||||
| 15 | 21M7216 | Screw | 6 | X | X | |||||
| 16 | E69946 | Shield | 2 | X | X | |||||
| 17 | 14M7139 | Nut | 6 | X | X | |||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS | ||
| 18 | 14M7273 | Nut | 4 | X | ||||||
| 19 | E70939 | Shield | 1 | - | 279000 | |||||
| E70940 | Shield | 1 | - | 279000 | ||||||
| 20 | AE41222 | Arm | 2 | - | 280202 | |||||
| 21 | 24H1871 | Washer | AR | - | 280202 | |||||
| 22 | AE41224 | Bracket | 2 | - | 280202 | |||||
| 23 | JD7844 | Lubrication Fitting | 2 | X | ||||||
| 24 | 24M7117 | Washer | 6 | X | X | |||||
| 25 | DC57224 | Arm | 1 | 280203 | - | |||||
| DC57223 | Arm | 1 | 280203 | - |
MONITOR BOX CIRCUIT BREAKER(МОНИТОР СХЕМА ЭЛЕКТРОЩИТКА)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | T44946 | Tie Band | 3 | X | X | |||||
| 2 | AR28403 | Circuit Breaker | 1 | X | X | |||||
| 3 | 14H631 | Nut | 2 | X | X | |||||
| 4 | H83060 | Grommet | 1 | X | X | |||||
| 5 | AE43486 | Wiring Harness | 1 | X | X | |||||
| 6 | H36221 | Grommet | 1 | X | X | |||||
| 7 | AR67855 | Electrical Connector Assy | 1 | X | X | |||||
| 8 | R77464 | Elec. Connector Terminal | 1 | X | X | |||||
| 9 | R76873 | Elec. Connector Terminal | 1 | X | X | |||||
| 10 | AE44390 | Elec. Connector Accessory | 1 | X | X | |||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS | ||
| 11 | DC33028 | Wiring Harness | 1 | X | ||||||
| DC32960 | Wiring Harness | 1 | - | 295307 | ||||||
| DC33045 | Wiring Harness | 1 | 295308 | - | ||||||
| 12 | AP24341 | Clamp | 10 | X | ||||||
| 13 | E70406 | Screw | 10 | X | ||||||
| 14 | DC31061 | Wiring Harness | 1 | X | X | |||||
| DC31707 | Wiring Harness | 1 | X | X | ||||||
| 15 | DC31525 | Wiring Harness | 1 | X | X | |||||
| 16 | E78876 | Clip | 11 | X | X |

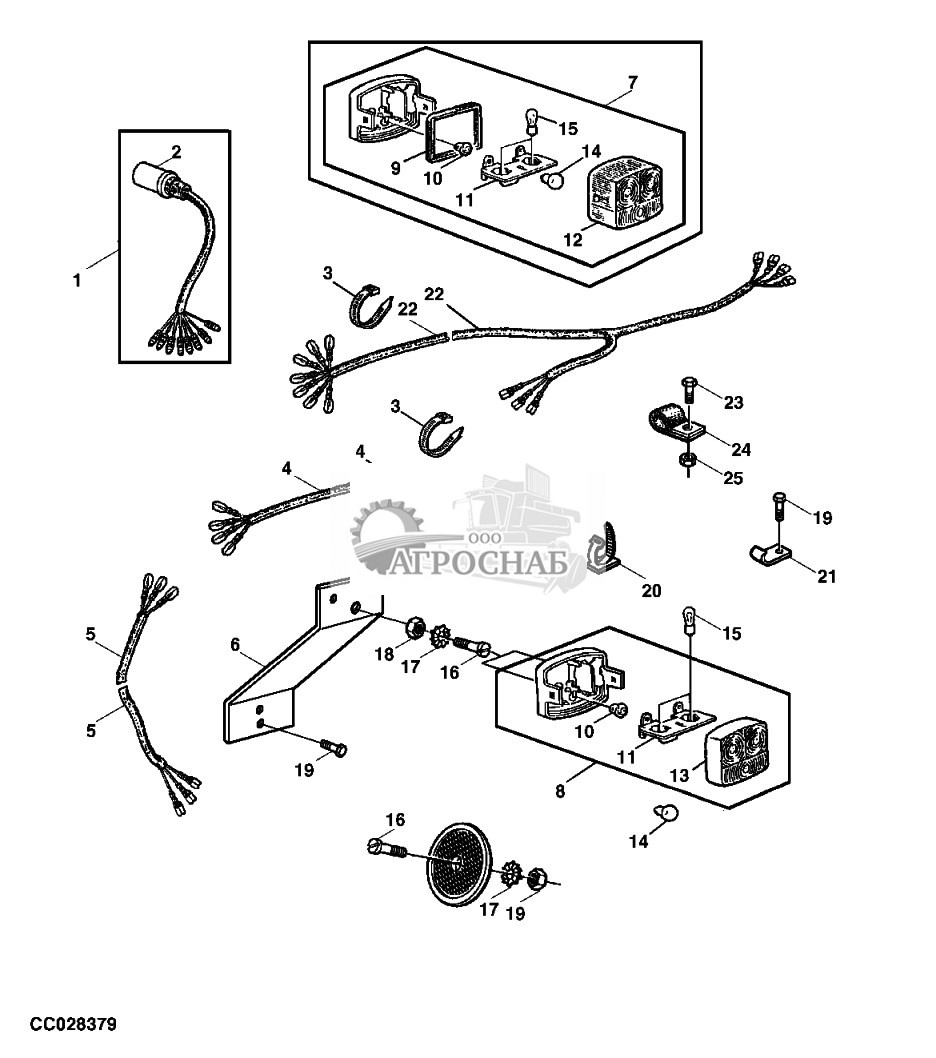

CLEARANCE LIGHTS(ГАБАРИТНЫЕ ОГНИ)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | ...... | Wiring Harness | 1 | X | ||||||
| 2 | L83676 | Elec. Connector Terminal | 1 | X | X | X | ||||
| 3 | CC17065 | Clamp | AR | X | X | X | ||||
| 4 | DC27144 | Wiring Harness | 1 | X | X | X | ||||
| 5 | DC27143 | Wiring Harness | 1 | X | ||||||
| ...... | Wiring Harness | 1 | - | XXXXXX | ||||||
| DC27143 | Wiring Harness | 1 | XXXX | - | ||||||
| 6 | CC20887 | Bracket | 2 | X | X | X | ||||
| 7 | AT43601 | Lamp | 1 | X | X | X | ||||
| AT43600 | Lamp | 1 | X | X | X | |||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS | ||
| 8 | AL67206 | Tail Lamp | 1 | X | X | X | ||||
| AL67208 | Tail Lamp | 1 | X | X | X | |||||
| 9 | L31778 | Gasket | 2 | X | X | X | ||||
| 10 | ...... | Grommet | 2 | X | X | X | ||||
| 11 | L31777 | Holder | 2 | X | X | X | ||||
| 12 | L31781 | Lens | 1 | X | X | X | ||||
| L31780 | Lens | 1 | X | X | X | |||||
| 13 | L63506 | Lens | 1 | X | X | X | ||||
| L63508 | Lens | 1 | X | X | X | |||||
| 14 | 57M7013 | Bulb | 2 | X | X | X | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS | ||
| 15 | 57M7014 | Bulb | 4 | X | X | X | ||||
| 16 | 21M7022 | Screw | AR | X | X | X | ||||
| 17 | 12M7060 | Washer | AR | X | X | X | ||||
| 18 | 14M7028 | Nut | AR | X | X | X | ||||
| 19 | 37M7058 | Screw | 8 | X | X | X | ||||
| 20 | CC107767 | Clamp | 2 | X | X | X | ||||
| 21 | N10010 | Clip | 4 | X | X | X | ||||
| 22 | ...... | Wiring Harness | 1 | X | ||||||
| 23 | 03M7183 | Bolt | 4 | X | ||||||
| 24 | AP24341 | Clamp | 4 | X | ||||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS | ||
| 25 | 14M7298 | Flange Nut | 4 | X | ||||||
| 26 | CC22585 | Reflector | 2 | X |

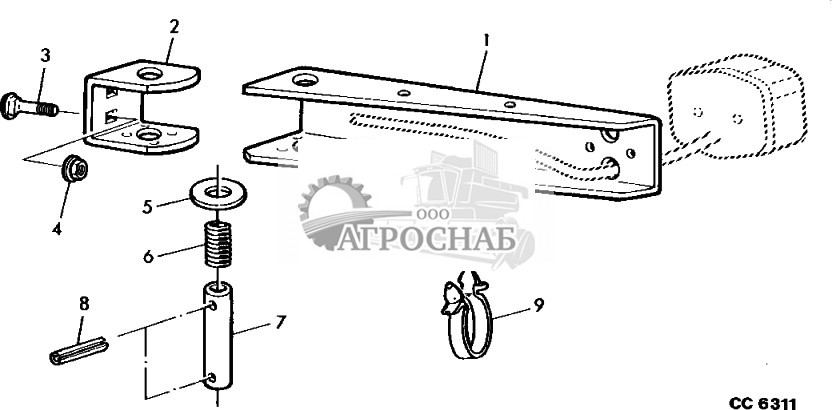

CLEARANCE LIGHTS(ГАБАРИТНЫЕ ОГНИ)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | CC36896 | Channel | 2 | X | X | X | ||
| 2 | DC31315 | Bail | 2 | X | X | X | ||
| 3 | 03M7184 | Bolt | AR | X | X | X | ||
| 4 | 14M7298 | Flange Nut | AR | X | X | X | ||
| 5 | 24M7051 | Washer | 2 | X | X | X | ||
| 6 | Z24302 | Spring | 2 | X | X | X | ||
| 7 | CA24637 | Spacer | 2 | X | X | X | ||
| 8 | 34H286 | Spring Pin | 4 | X | X | X | ||
| 9 | CC31316 | Clamp | 4 | X | X | X |
NET SWITCH(NET ПЕРЕКЛЮЧАТЕЛЬ)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | CC31101 | Support | 1 | X | X | |||
| 2 | AE48968 | Switch | 1 | X | X | |||
| 3 | E71183 | Strap | 1 | X | X | |||
| 4 | 21H1348 | Screw | 2 | X | X |
PUMP SWITCH(НАСОС ПЕРЕКЛЮЧАТЕЛЬ)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | CC31100 | Bracket | 1 | X | X | |||
| 2 | AE48968 | Switch | 1 | X | X | |||
| 3 | E71183 | Strap | 1 | X | X | |||
| 4 | 21H1348 | Screw | 2 | X | X |
